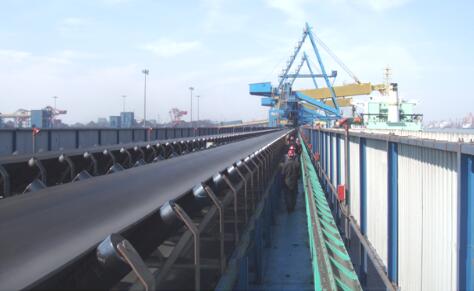

DT II, DT II (A) fixed belt conveyor

Time:2016-04-15　Form:Jiangsu Wuyun　Hit:3724

1.Use and scope of application

DT II, DT II (A) fixed belt conveyor is a general type product with domestic unified design. The calculation method of its main parameters, transmission power and tension adopts ISO international standards. The product is widely applied to various industries such as metallurgy, mine, coal, transport, construction material, chemical engineering, light industry, harbor, power, petroleum, etc. It transports material through transmission system combined by single or multiple units, and can transport various kinds of bulk material and items packed in sets with density ranging from 500 to 2500kg/m3.

This conveyor is applicable to operation environment with temperature around -25℃~40℃. With corresponding protective measures applied, it can also operate under conditions with special requirements, such as explosion-proof, waterproof, fire-retardant, corrosion/high temperature/cold resistant.

2.Technical features and structure diagram

?Transport capacity of belt conveyor is below 2.5t/m3

?Belt conveyor can be divided into the following categories according to belt width: 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400

?Belt conveyor can be divided into the following categories according to belt velocity: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0, (4.5), 5.0, (5.6), 6.5

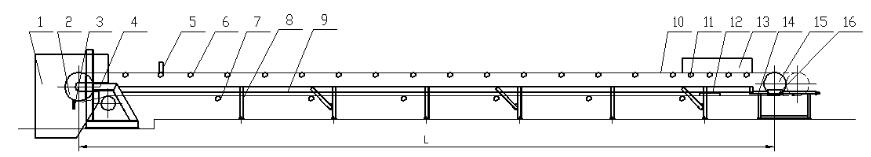

1. Head funnel 2.Head drum 3.Spring cleaner 4.Headstock 5.Protective device 6.Carrying idler 7.Return idler 8.Landing leg 9.Middle frame 10.Tape carrier 11.Buffer idler 12.Nonload section cleaner 13. Material-guiding groove 14.Tailstock 15.Tail drum 16.Tension device

3. Main technical parameters

Belt width (mm)	0.8	1.0	1.25	1.6	2.0	2.5	3.15	4	(4.5)	5.0	(5.6)	6.5
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	198	248	310	397	496	620	781
1000	324	405	507	648	811	1014	1278	1622
1200		593	742	951	1188	1486	1872	2377	2674	2971
1400		825	1032	1321	1652	2065	2602	3304	3718	4130
1600					2186	2733	3444	4373	4920	5465	6122
1800					2795	3494	4403	5591	6291	6989	7829	9083
2000					3470	4338	5466	6941	7808	8676	9717	11277
2200							6843	8690	9776	10863	12166	14120
2400							8289	10526	11842	13158	14737	17104

Notes: 1. The transport capacity in the table is calculated under horizontal transport condition, when angle of move of material = 20°, groove angle of idler = 35°.

2. The belt velocity in the table (4.5m/s, 5.6m/s) is not a standard value, and is generally not recommended for application.
